V09
| Availability: | |
|---|---|
|
| |
Model | V09 |
Rated Power（KW) | 15KW |
Max speed（km/h） | ≥71 |
Battery type | Lithium Iron Phosphate |
wheelbase (mm) | 2630 |
Curb weight(kg) | 910 |
Rated load(kg) | 660 |
Total GVW | 1700 |
LxWxH（mm） | 3820x1480x1925 |
Wheelbase（mm） | 2630 |
Cargo box length（mm) | 2045 |
Cargo box width（mm) | 1420 |
Cargo box Height（mm) | 1195 |
Minimum Ground Clearance (Curb Weight/Full Load) (mm) | 160/140 |
Doors | 2 |
Seats | 2 |
Cruising Range Load (km) CLTC | ≥150 |
Fast Charge/Slow Charge | Slow Charging 8~10h |
Drive mode | Rear-Wheel Drive |
Front suspension type | MacPherson Independent Suspension |
Rear suspension type | Leaf Spring Non-independent suspension |
Leaf spring pcs | 3+1 |
ABS | yes |
（EBD/CBC） | yes |
Rim material | Steel rim |

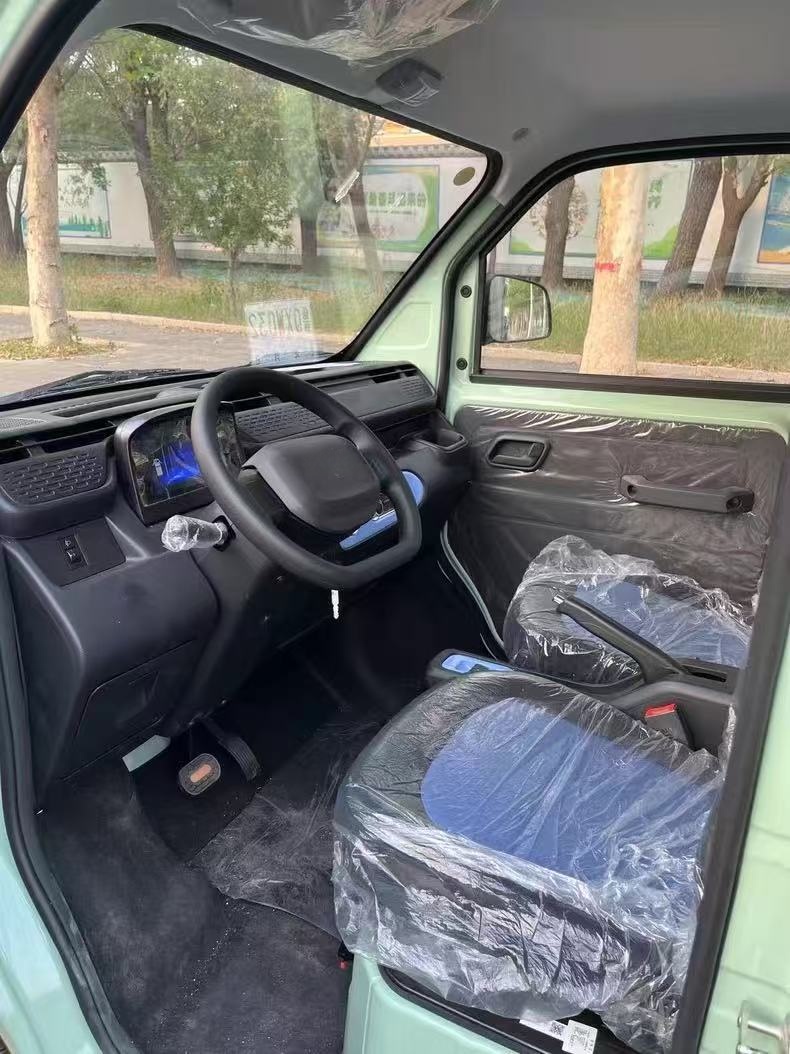

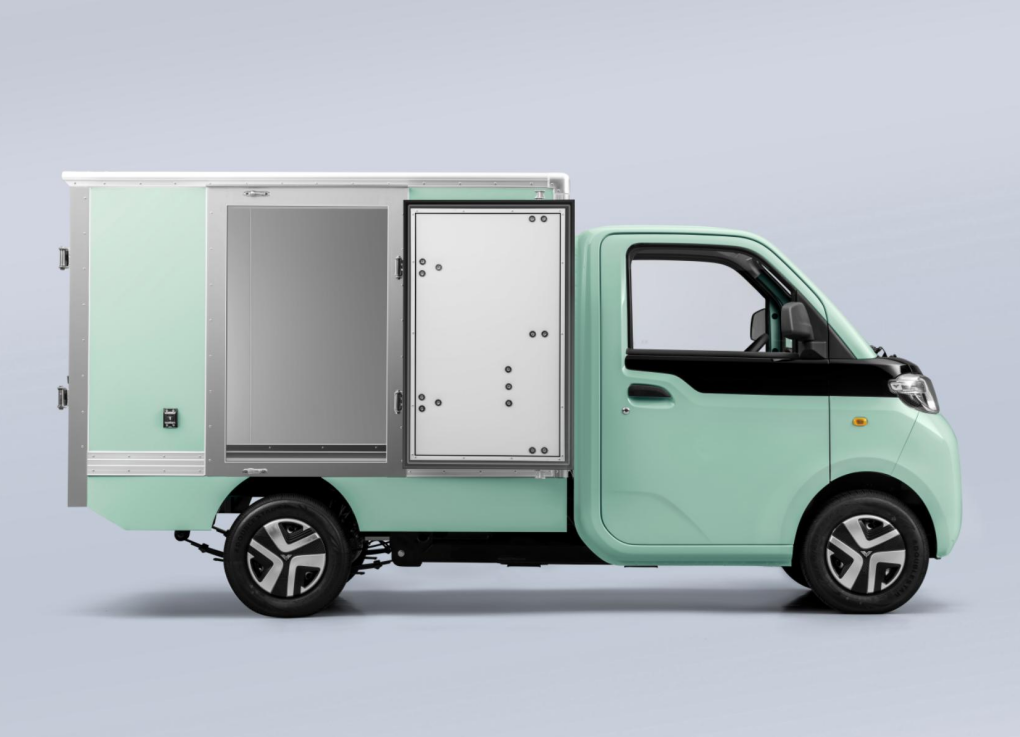

Including these parts funtion: Electric Lifting Windows,Radio, USB,Central Control Instruction Panel, Console, Reverse camera, Air Conditioner and Heater,Front Tow Hook, Warning Triangle,Reflective Vest,Cargo Box Sill Outer,All-inclusive Carpet,Pinboard Cargo Box,Frame Seperating Cabin and Cargo Box, Side Door of Cargo Box. | |
